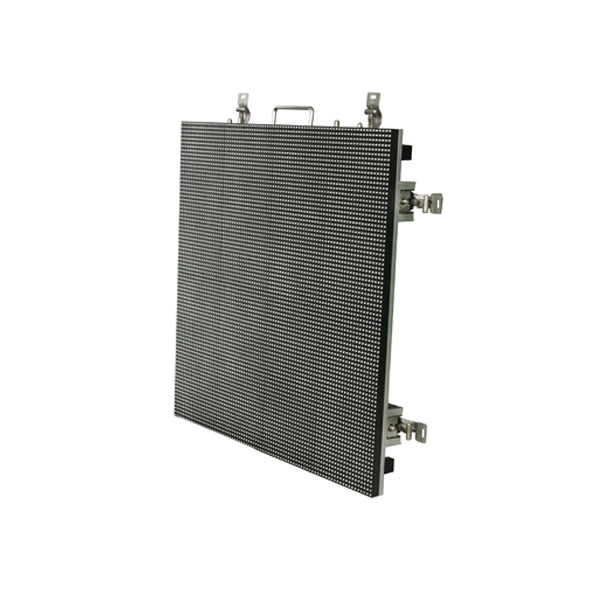

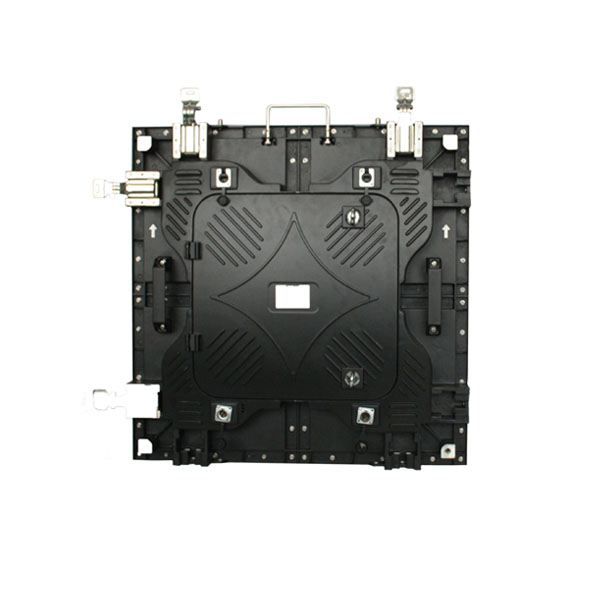

Product details - P6 (Superslim)

  • S6i
  • Pixel Configuration: SMD 3in 1
  • Pixel Pitch: 6.25mm
  • Module Resolution: 80 × 80pixel dots
  • Module size: 500x500 (mm)
  • Cabinet Resolution: 80 × 80pixel dots
  • Cabinet Size: 500x500x78mm
  • Cabinet Weight: 12 Kg
  • Applications
  • Features
  • Specifications

  • - White Balance: D50 to D93 - 78mm Extremely Thin Design
    - Brightness:4500nits to 5500nits -  SMD 3535 3in1 Pixel Configuration
    - Max Power Consumption: 180W - 140° High Viewing Angle
    - AC 86~264V Voltage Input -2000:1  High Contrast Ratio
    - Constant Current Drive - 1000Hz High Refresh Rate

    Product Details:



    Packages for led display:

  • S6i SUPER SLIM LED SCREEN SPECIFICATIONS
    6.25mm Pixel Pitch with SMD 3in1 LEDs
    Model: S6i
    Parameter Unit Value
     Brightness nits 5000
     Color temperature deg.k 6500
     Viewing angle - Horizontal deg. 140(﹢70/﹣70)
     Viewing angle - Vertical deg. 140(﹢70/﹣70)
     Cabinet Weight kg 12
     Cabinet Width mm 500
     Cabinet height mm 500
     Cabinet depth mm 78
     Cabinet area sq. m. 0.25
     Cabinet material   Aluminium
     Aspect ratio   1 : 1
     Ingress Protection (Front/Rear) IP IP65/ IP43

    Operating temperature range

    deg. C 0 to ﹢40
     Operating  Humidity range HR 10% to 90%
     Pixel type and configuration R/G/B SMD 3in1
     Pixel pitch mm 6.25
     Pixel matrix per cabinet   80 x 80
     Pixels per cabinet   6400
     Lines per meter   160
     Pixels per sq. meter   25600
     LEDs per sq. meter   25600
     Recommended minimum viewing distance m 6
     Colours   281 trillion
     Gray scale  Levels 65536 levels per colour
     Brightness control Levels 100
     Digital processing bit 16
     Frame rate Hertz 60
     Display refresh rate Hertz ≥2000
    Scan mode   1/10 duty scan drive
     Input voltage VAC 110 / 240
     Input power frequency Hertz 50 or 60
     Input power (max/avg) Watts per sq.m 500/200
