Product details - P10 (1R1G )

  • FCN-ODA10
  • Pixel Configuration: 1R 1G
  • Pixel Pitch: 10mm
  • Module Resolution: 32 × 16 pixel dots
  • Module size: 320 x 160 (mm)
  • Cabinet Resolution: 128 × 96 pixel dots
  • Cabinet Size: 1280 x 960 x 185 (mm)
  • Cabinet Weight: 58 kgs
  • Applications
  • Features
  • Specifications
  • - 1/4 duty scan drive - IP65 Waterproof
    - Brightness:3000nits to 3500nits - 1R1G Pixel Configuration
    - Max Power Consumption:18W - High Viewing Angle
    - DC 5V Voltage Input - High Contrast Ratio with a perfect louver/cover
    - Constant Current Drive

    Product Details:



    Packages for led display:

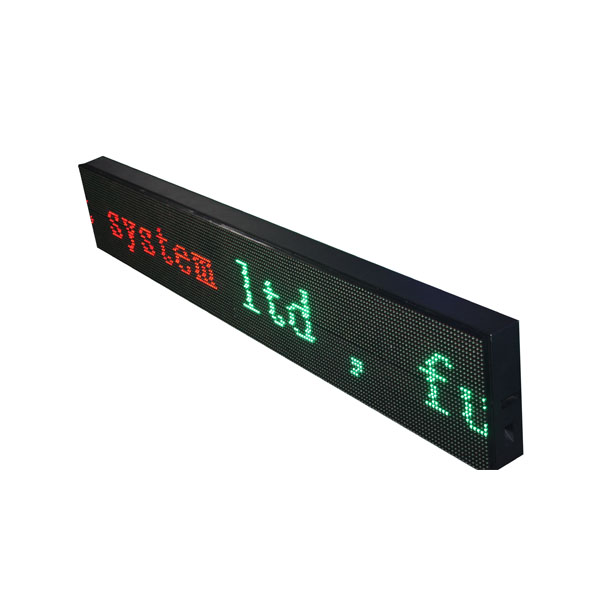

  • P10 OUTDOOR DUAL COLOR LED SCREEN SPECIFICATIONS
    10mm Pixel Pitch with Oval LEDs
    Model: FCN-ODA10
    Parameter Unit Value
    Brightness nits 3000
    Viewing angle - Horizontal deg. 120(﹢60/﹣60)
    Viewing angle - Vertical deg. 60(﹢30/﹣30)
    Cabinet Weight kg 58
    Cabinet Width mm 1280
    Cabinet height mm 960
    Cabinet depth mm 185
    Cabinet area sq. m. 1.23
    Cabinet material   Steel
    Aspect ratio   4 : 3
    Ingress Protection (Front/Rear) IP IP65/IP43

    Operating temperature range

    deg. C -20 to 50
    Operating Humidity range HR 10% to 90%
    Pixel type and configuration R/G/B 1,1
    Pixel pitch mm 10
    Pixel matrix per cabinet   128 x 96
    Pixels per cabinet   12288
    Lines per meter   100
    Pixels per sq. meter   10000
    LEDs per sq. meter   20000
    Recommended minimum viewing distance m 5
    Colours   65536
    Gray scale Levels 256 levels per colour
    Brightness control Levels 8
    Digital processing bit 8
    Display refresh rate Hertz ≥300
    Scan mode   1/4 duty scan drive
    Input voltage VAC 110 / 240
    Input power frequency Hertz 50 or 60
    Input power (max/avg) Watts per sq.m 300/80
