| - White Balance: D50 to D93 | - Extremely Thin Design |
| - Brightness:6000nits to 7500nits | - 1R1G1B Pixel Configuration |
| - Max Power Consumption:30W | - High Viewing Angle |
| - DC 5V Voltage Input | - High Contrast Ratio with a perfect louver/cover |

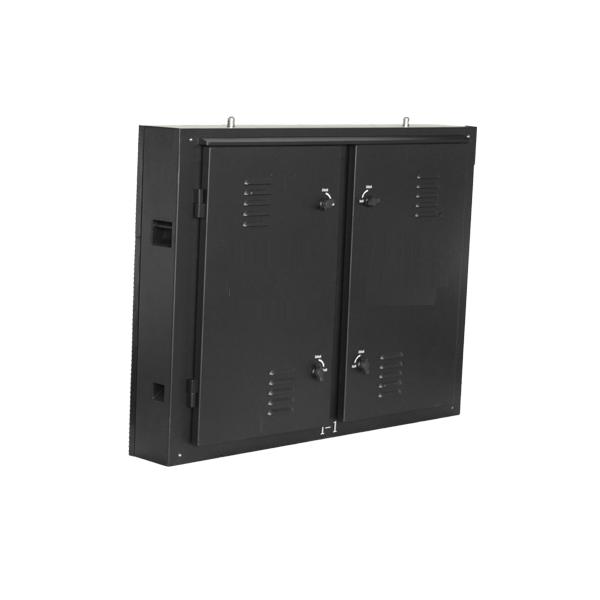

| P10 OUTDOOR FULL COLOR LED SCREEN SPECIFICATIONS |
| 10.667mm Pixel Pitch with Oval LEDs |
| Model: CM-OFR10 |
| Parameter | Unit | Value |
| Brightness | nits | 6000 |
| Color temperature | deg.k | 6500 |
| Viewing angle - Horizontal | deg. | 120(﹢60/﹣60) |
| Viewing angle - Vertical | deg. | 60(﹢30/﹣30) |
| Cabinet Weight | kg | 41 |
| Cabinet Width | mm | 1024 |
| Cabinet height | mm | 768 |
| Cabinet depth | mm | 185 |
| Cabinet area | sq. m. | 0.79 |
| Cabinet material | Aluminium | |
| Aspect ratio | 4 : 3 | |
| Ingress Protection (Front/Rear) | IP | IP65/IP43 |
|
Operating temperature range |
deg. C | -20 to 50 |
| Operating Humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | 1,1,1 |
| Pixel pitch | mm | 10.667 |
| Pixel matrix per cabinet | 96 x 72 | |
| Pixels per cabinet | 6912 | |
| Lines per meter | 94 | |
| Pixels per sq. meter | 8789 | |
| LEDs per sq. meter | 26367 | |
| Recommended minimum viewing distance | m | 11 |
| Colours | 281 trillion | |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | ≥2000 |
| Input voltage | VAC | 110 / 240 |
| Input power frequency | Hertz | 50 or 60 |
| Input power (max/avg) | Watts per sq.m | 600/250 |
