| - White Balance: D50 to D93 | - 7mm Extremely Thin Design |
| - Brightness:1000nits to 1500nits | - SMD 3in1 Pixel Configuration |
| - Max Power Consumption: 25W | - 140° High Viewing Angle |
| - DC 5V Voltage Input | -2000:1 High Contrast Ratio |
| - Constant Current Drive | - Flexible surface mount |

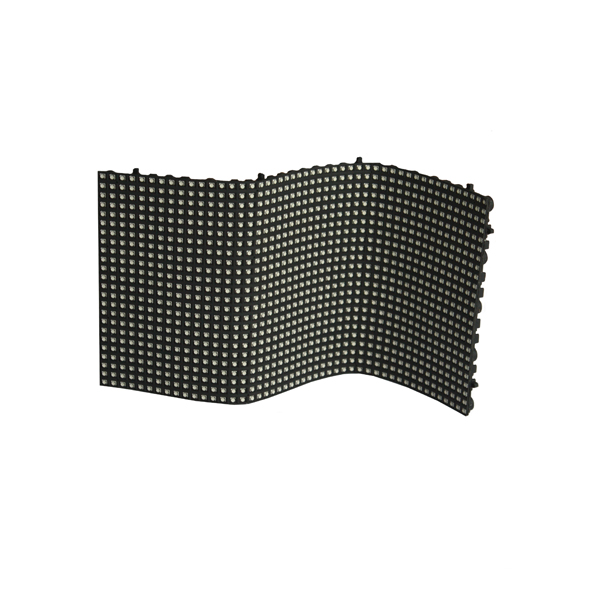

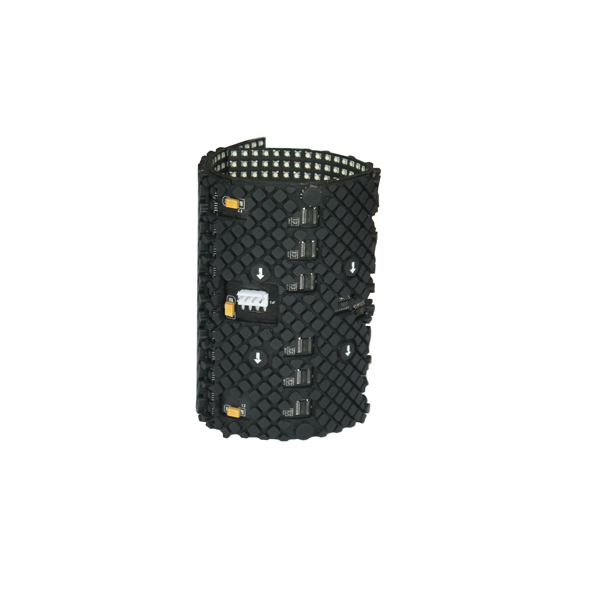

| F6 Flexible LED Display SPECIFICATIONS |
| 6mm Pixel Pitch with SMD 3in1 LEDs |
| Model: F6 |
| Parameter | Unit | Value |
| Brightness | nits | 1500 |
| Color temperature | deg.k | 6500 |
| Viewing angle - Horizontal | deg. | 140(﹢70/﹣70) |
| Viewing angle - Vertical | deg. | 140(﹢70/﹣70) |
| Module Weight | kg | 0.31 |
| Module Width | mm | 288 |
| Module height | mm | 144 |
| Module depth | mm | 7 |
| Module area | sq. m. | 0.04 |
| Module material | Silicon | |
| Aspect ratio | 2 : 1 | |
| Ingress Protection (Front/Rear) | IP | IP40/IP20 |
|
Operating temperature range |
deg. C | 0 to ﹢40 |
| Operating Humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3 in 1 |
| Pixel pitch | mm | 6 |
| Pixel matrix per Module | 48 x 24 | |
| Pixels per Module | 1152 | |
| Lines per meter | 167 | |
| Pixels per sq. meter | 27777 | |
| LEDs per sq. meter | 27777 | |
| Recommended minimum viewing distance | m | 6 |
| Colours | 281 trillion | |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | ≥1000 |
| Scan mode | 1/12 duty scan drive | |
| Input voltage | VAC | 110 / 240 |
| Input power frequency | Hertz | 50 or 60 |
| Input power (max/avg) | Watts per sq.m | 600/250 |
