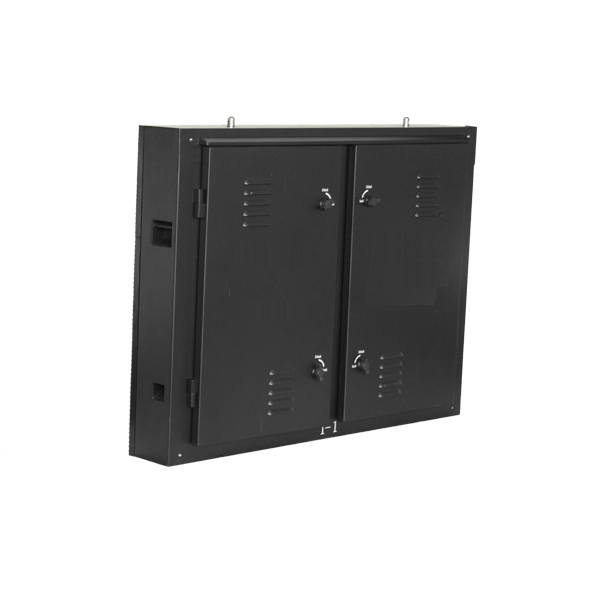

Product details - P12 (SMD)
- CM-OFS12
- Pixel Configuration: SMD 3in1
- Pixel Pitch: 12.8mm
- Module Resolution: 20 ×20 pixel dots
- Module size: 256 mm x 256mm
- Cabinet Resolution: 80 × 60 pixel dots
- Cabinet Size: 1024 x 768 x 185 (mm)
- Cabinet Weight: 38 kg
- Applications
- Features
- Specifications
| P12.8 OUTDOOR FULL COLOR LED SCREEN SPECIFICATIONS |
| 12.8mm Pixel Pitch with SMD 3in1 LEDs |
| Model: FCN-OFS12 |
| Parameter |
Unit |
Value |
| Brightness |
nits |
5000 |
| Color temperature |
deg.k |
6500 |
| Viewing angle - Horizontal |
deg. |
140(﹢70/﹣70) |
| Viewing angle - Vertical |
deg. |
140(﹢70/﹣70) |
| Cabinet Weight |
kg |
38 |
| Cabinet Width |
mm |
1024 |
| Cabinet height |
mm |
768 |
| Cabinet depth |
mm |
185 |
| Cabinet area |
sq. m. |
0.79 |
| Cabinet material |
|
Aluminium |
| Aspect ratio |
|
4 : 3 |
| Ingress Protection (Front/Rear) |
IP |
IP65/IP43 |
|
Operating temperature range
|
deg. C |
-20 to 50 |
| Operating Humidity range |
HR |
10％ to 90％ |
| Pixel type and configuration |
R/G/B |
SMD 3in1 |
| Pixel pitch |
mm |
12.8 |
| Pixel matrix per cabinet |
|
80 x 60 |
| Pixels per cabinet |
|
4800 |
| Lines per meter |
|
78 |
| Pixels per sq. meter |
|
6104 |
| LEDs per sq. meter |
|
6104 |
| Recommended minimum viewing distance |
m |
12.8 |
| Colours |
|
281 trillion |
| Gray scale |
Levels |
65536 levels per colour |
| Brightness control |
Levels |
100 |
| Digital processing |
bit |
16 |
| Frame rate |
Hertz |
60 |
| Display refresh rate |
Hertz |
≥2000 |
| Input voltage |
VAC |
110 / 240 |
| Input power frequency |
Hertz |
50 or 60 |
| Input power (max/avg) |
Watts per sq.m |
600/250 |
