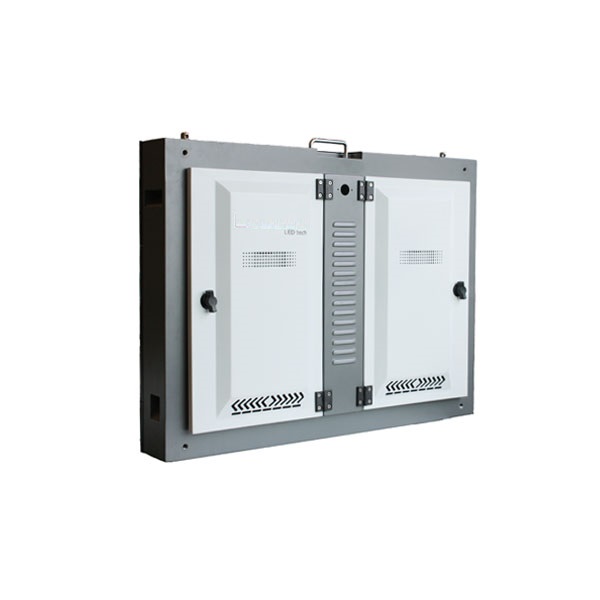

Product details - P10

  • CM-IFS10
  • Pixel Configuration: 1R1G1B (SMD 3 in 1)
  • Pixel Pitch: 10mm
  • Module Resolution: 32 × 16 pixel dots
  • Module size: 320mm x 160mm
  • Cabinet Resolution: 96 × 80 pixel dots
  • Cabinet Size: 960 x 800 x 180 (mm)
  • Cabinet Weight: 38 kg
  • Applications
  • Features
  • Specifications

  • - White Balance: D50 to D93 - Extremely Thin Design
    - Brightness:1500nits to 2000nits - SMD 3in1 Pixel Configuration
    - Max Power Consumption:30W - High Viewing Angle
    - DC 5V Voltage Input - High Refresh Rate Performance
    - Constant Current Drive

    Product Details:



    Packages for led display:

  • P10 INDOOR FULL COLOR LED SCREEN SPECIFICATIONS
    10mm Pixel Pitch with SMD 3in1 LEDs
    Model:CM-IFS10
    Parameter Unit Value
     Brightness nits 1500
     Color temperature deg.k 6500
     Viewing angle - Horizontal deg. 140(﹢70/﹣70)
     Viewing angle - Vertical deg. 140(﹢70/﹣70)
     Cabinet Weight kg 38
     Cabinet Width mm 960
     Cabinet height mm 800
     Cabinet depth mm 165
     Cabinet area sq. m. 0.77
     Cabinet material   Aluminium
     Aspect ratio   6 : 5
     Ingress Protection (Front/Rear) IP IP40/IP20

    Operating temperature range

    deg. C 0 to ﹢40
     Operating  Humidity range HR 10% to 90%
     Pixel type and configuration R/G/B SMD 3in1
     Pixel pitch mm 10
     Pixel matrix per cabinet   96 x 80
     Pixels per cabinet   7680
     Lines per meter   100
     Pixels per sq. meter   10000
     LEDs per sq. meter   10000
     Recommended minimum viewing distance m 10
     Colours   281 trillion
     Gray scale  Levels 65536 levels per colour
     Brightness control Levels 100
     Digital processing bit 16
     Frame rate Hertz 60
     Display refresh rate Hertz ≥1000
    Scan mode   1/4 duty scan drive
     Input voltage VAC 110 / 240
     Input power frequency Hertz 50 or 60
     Input power (max/avg) Watts per sq.m 600/250
