Product details - P7.62

  • CM-IFS7.62
  • Pixel Configuration: 1R1G1B (SMD 3 in 1)
  • Pixel Pitch: 7.62mm
  • Module Resolution: 32 × 16 pixel dots
  • Module size: 244mm x 122mm
  • Cabinet Resolution: 128 × 96 pixel dots

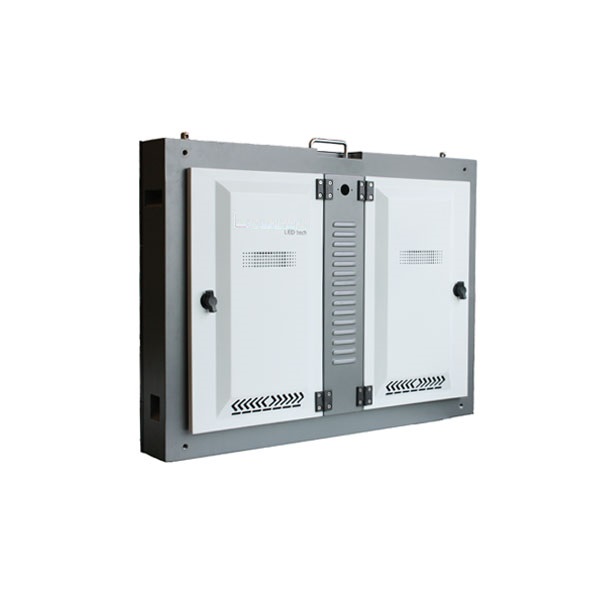

  • Cabinet Size: 976 x 732 x 165 (mm)
  • Cabinet Weight: 27kg
  • Applications
  • Features
  • Specifications

  • - White Balance: D50 to D93 - Extremely Thin Design
    - Brightness:1500nits to 2000nits - SMD 3in1 Pixel Configuration
    - Max Power Consumption: 22W - High Viewing Angle
    - DC 5V Voltage Input - High Refresh Rate Performance
    - Constant Current Drive

    Product Details:



    Packages for led display:

  • P7.62 INDOOR FULL COLOR LED SCREEN SPECIFICATIONS
    7.62mm Pixel Pitch with SMD 3in1 LEDs
    Model: CM-IFS7.62
    Parameter Unit Value
     Brightness nits 1500
     Color temperature deg.k 6500
     Viewing angle - Horizontal deg. 140(﹢70/﹣70)
     Viewing angle - Vertical deg. 140(﹢70/﹣70)
     Cabinet Weight kg 27
     Cabinet Width mm 976
     Cabinet height mm 732
     Cabinet depth mm 165
     Cabinet area sq. m. 0.71
     Cabinet material   Aluminium
     Aspect ratio   4 : 3
     Ingress Protection (Front/Rear) IP IP40/IP20

    Operating temperature range

    deg. C 0 to ﹢40
     Operating  Humidity range HR 10% to 90%
     Pixel type and configuration R/G/B SMD 3in1
     Pixel pitch mm 7.62
     Pixel matrix per cabinet   128 x 96
     Pixels per cabinet   12288
     Lines per meter   131
     Pixels per sq. meter   17777
     LEDs per sq. meter   17777
     Recommended minimum viewing distance m 8
     Colours   281 trillion
     Gray scale  Levels 65536 levels per colour
     Brightness control Levels 100
     Digital processing bit 16
     Frame rate Hertz 60
     Display refresh rate Hertz ≥1000
    Scan mode   1/4 duty scan drive
     Input voltage VAC 110 / 240
     Input power frequency Hertz 50 or 60
     Input power (max/avg) Watts per sq.m 600/250
