Product details - P3

  • CM-IFS3
  • Pixel Configuration: 1R1G1B (Black SMD 3 in 1)
  • Pixel Pitch: 3mm
  • Module Resolution: 64 × 32 pixel dots
  • Module size: 192mm x 96mm
  • Cabinet Resolution: 192×192 pixel dots

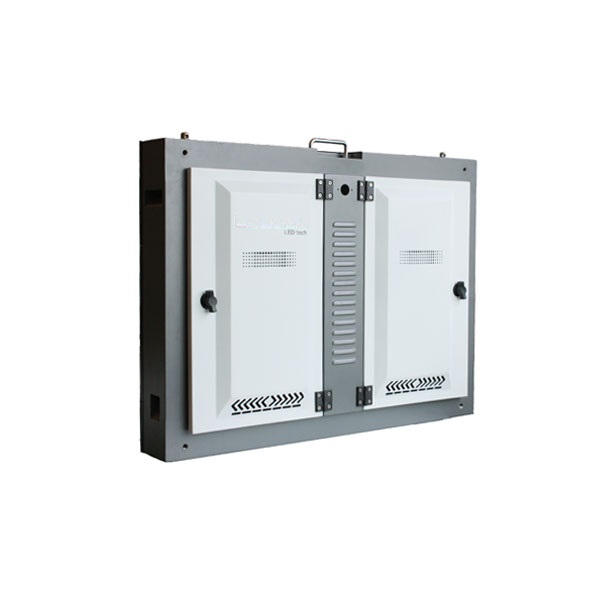

  • Cabinet Size: 576 x 576 x 165(mm)
  • Cabinet Weight: 15 kg
  • Applications
  • Features
  • Specifications

  • - White Balance: D50 to D93 - Extremely Thin Design
    - Brightness:1500nits to 2000nits - SMD 2020 3in1 Pixel Configuration
    - Max Power Consumption: 25W - High Viewing Angle
    - DC 5V Voltage Input - High Contrast Ratio
    - Constant Current Drive - High Refresh Rate Performance

    Product Details:



    Packages for led display:

  • P3 INDOOR FULL COLOR LED SCREEN SPECIFICATIONS
    3mm Pixel Pitch with SMD 3in1 LEDs
    Model:CM-IFS3
    Parameter Unit Value
     Brightness nits 1500
     Color temperature deg.k 6500
     Viewing angle - Horizontal deg. 140(﹢70/﹣70)
     Viewing angle - Vertical deg. 140(﹢70/﹣70)
     Cabinet Weight kg 15
     Cabinet Width mm 576
     Cabinet height mm 576
     Cabinet depth mm 165
     Cabinet area sq. m. 0.33
     Cabinet material   Aluminium
     Aspect ratio   1 : 1
     Ingress Protection (Front/Rear) IP IP40/IP20

    Operating temperature range

    deg. C 0 to ﹢40
     Operating  Humidity range HR 10% to 90%
     Pixel type and configuration R/G/B SMD 3in1
     Pixel pitch mm 3
     Pixel matrix per cabinet   192 x 192
     Pixels per cabinet   36864
     Lines per meter   333
     Pixels per sq. meter   111111
     LEDs per sq. meter   111111
     Recommended minimum viewing distance m 3
     Colours   281 trillion
     Gray scale  Levels 65536 levels per colour
     Brightness control Levels 100
     Digital processing bit 16
     Frame rate Hertz 60
     Display refresh rate Hertz ≥1000
    Scan mode   1/16 duty scan drive
     Input voltage VAC 110/ 240
     Input power frequency Hertz 50 or 60
     Input power (max/avg) Watts per sq.m 600/250
