Product details - CM-OSZ10

  • CM-OSZ10
  • Pixel Configuration: 1R
  • Pixel Pitch: 10mm
  • Module Resolution: 32 × 16 pixel dots
  • Module size: 320mm x 160mm
  • Cabinet Resolution: 128 × 96 pixel dots
  • Cabinet Size: 1280 x 960 x 185 (mm)
  • Cabinet Weight: 58kgs
  • Applications
  • Features
  • Specifications

  • - 1/4 duty scan drive - IP65 Waterproof
    - Brightness:3000nits to 3500nits - 1R Pixel Configuration
    - Max Power Consumption:23W - High Viewing Angle
    - DC 5V Voltage Input - High Contrast Ratio with a perfect louver/cover
    - Constant Current Drive

    Product Details:



    Packages for led display:

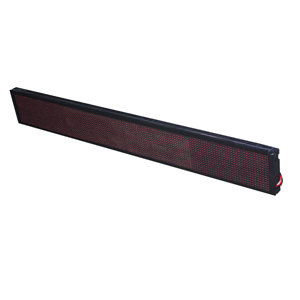

  • P10 OUTDOOR SINGLE COLOR LED SCREEN SPECIFICATIONS
    10mm Pixel Pitch with Oval LEDs
    Model: FCN-OSZ10
    Parameter Unit Value
     Brightness nits 3000
     Viewing angle - Horizontal deg. 120(﹢60/﹣60)
     Viewing angle - Vertical deg. 60(﹢30/﹣30)
     Cabinet Weight kg 58
     Cabinet Width mm 1280
     Cabinet height mm 960
     Cabinet depth mm 185
     Cabinet area sq. m. 1.23
     Cabinet material   Steel
     Aspect ratio   4 : 3
     Ingress Protection (Front/Rear) IP IP65/IP43

    Operating temperature range

    deg. C -20 to 50
     Operating  Humidity range HR 10% to 90%
     Pixel type and configuration R/G 1R
     Pixel pitch mm 10
     Pixel matrix per cabinet   128 x 96
     Pixels per cabinet   12288
     Lines per meter   100
     Pixels per sq. meter   10000
     LEDs per sq. meter   10000
     Recommended minimum viewing distance m 5
     Gray scale  Levels 256 levels per colour
     Brightness control Levels 8
     Digital processing bit 8
     Display refresh rate Hertz ≥300
    Scan mode   1/4 duty scan drive
     Input voltage VAC 110 / 240
     Input power frequency Hertz 50 or 60
     Input power (max/avg) Watts per sq.m 300/80
