Product details - P8 (SMD)

  • Pixel Pitch: 8 mm
  • Module Resolution: 32 × 16 pixel dots
  • Module size: 256 mm x 128 mm
  • Cabinet Resolution: 128 × 96 pixel dots

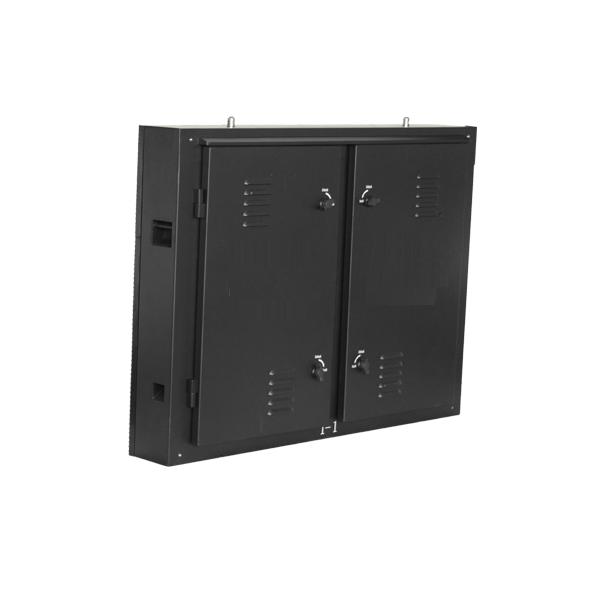

  • Cabinet Size: 1024 x 768 x 185 (mm)
  • Cabinet Weight: 36 kg
  • Applications
  • Features
  • Specifications

  • - White Balance: D50 to D93 - Extremely Thin Design
    - Brightness:5000nits to 6000nits - 3535 SMD 3in1 Pixel Configuration
    - Max Power Consumption:21W - High Viewing Angle
    - DC 5V Voltage Input - High Contrast Ratio with a perfect louver/cover
    - Constant Current Drive

    Product Details:



    Packages for led display:

  • P8 OUTDOOR FULL COLOR LED SCREEN SPECIFICATIONS
    8mm Pixel Pitch with SMD in1 LEDs
    Model: FCN-OFS8
    Parameter Unit Value
    Brightness nits 5000
    Color temperature deg.k 6500
    Viewing angle - Horizontal deg. 140(﹢70/﹣70)
    Viewing angle - Vertical deg. 140(﹢70/﹣70)
    Cabinet Weight kg 36
    Cabinet Width mm 1024
    Cabinet height mm 768
    Cabinet depth mm 185
    Cabinet area sq. m. 0.79
    Cabinet material   Aluminium
    Aspect ratio   4 : 3
    Ingress Protection (Front/Rear) IP IP65/IP43

    Operating temperature range

    deg. C -20 to 50
    Operating Humidity range HR 10% to 90%
    Pixel type and configuration R/G/B SMD 3in1
    Pixel pitch mm 8
    Pixel matrix per cabinet   128 x 96
    Pixels per cabinet   12288
    Lines per meter   125
    Pixels per sq. meter   15625
    LEDs per sq. meter   15625
    Recommended minimum viewing distance m 8
    Colours   281 trillion
    Gray scale Levels 65536 levels per colour
    Brightness control Levels 100
    Digital processing bit 16
    Frame rate Hertz 60
    Display refresh rate Hertz ≥2000
    Scan mode   1/4 duty scan drive
    Input voltage VAC 110 / 240
    Input power frequency Hertz 50 or 60
    Input power (max/avg) Watts per sq.m 600/250
