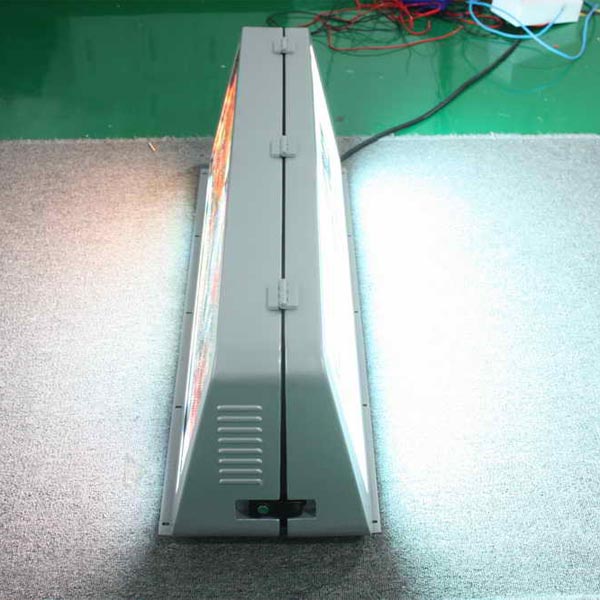

Product details - P6 (Double Face)
- CM-T6-A
- Pixel Configuration: SMD3528
- Pixel Pitch: 6mm
- Module Resolution: 32x 16 pixel dots
- Module size: 192mm x 96mm
- Cabinet Resolution: 160 x 48pixel dots
- Cabinet Size: 1000mm x 350mm x 300mm
- Cabinet Weight: 16kg
- Applications
- Features
- Specifications
| T6 FULL COLOR LED SCREEN SPECIFICATIONS |
| 6mm Pixel Pitch with SMD 3528 LEDs |
| Model: CM -T6-A |
| Parameter |
Unit |
Value |
| Brightness |
nits |
5000 |
| Color temperature |
deg.k |
6500 |
| Viewing angle - Horizontal |
deg. |
140(﹢70/﹣70) |
| Viewing angle - Vertical |
deg. |
140(﹢70/﹣70) |
| Cabinet Weight |
kg |
16 |
| Cabinet Width |
mm |
1000 |
| Cabinet height |
mm |
350 |
| Cabinet depth |
mm |
300 |
| Cabinet area |
sq. m. |
0.28 |
| Cabinet material |
|
Aluminium |
| Aspect ratio |
|
10 : 3 |
| Ingress Protection (Front/Rear) |
IP |
IP65 |
|
Operating temperature range
|
deg. C |
-20 to 50 |
| Operating Humidity range |
HR |
10％ to 90％ |
| Pixel type and configuration |
R/G/B |
SMD 3in1 |
| Pixel pitch |
mm |
6 |
| Pixel matrix per cabinet |
|
160 x 48 |
| Pixels per cabinet |
|
7680 |
| Lines per meter |
|
167 |
| Pixels per sq. meter |
|
27777 |
| LEDs per sq. meter |
|
27777 |
| Recommended minimum viewing distance |
m |
6 |
| Colours |
|
281 trillion |
| Gray scale |
Levels |
65536 levels per colour |
| Brightness control |
Levels |
100 |
| Digital processing |
bit |
16 |
| Frame rate |
Hertz |
60 |
| Display refresh rate |
Hertz |
≥2000 |
| Scan mode |
|
1/4 duty scan drive |
| Input voltage |
VAC |
9~36VDC |
| Input power (max/avg) |
Watts per sq.m |
600/200 |
