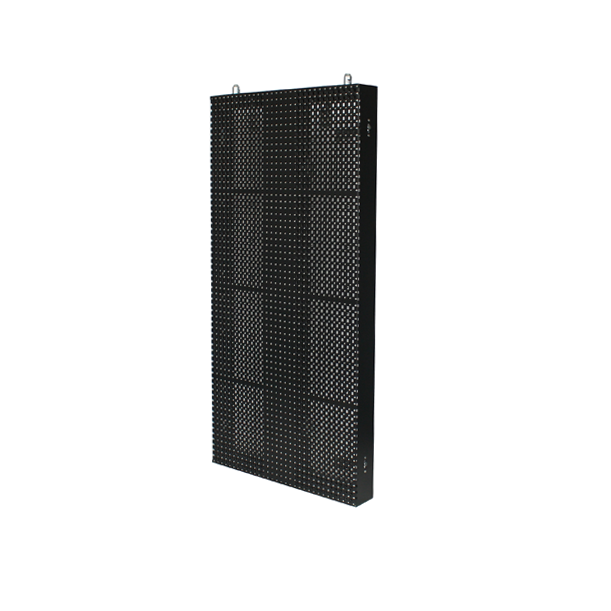

Product details - P12.5

  • C12.5
  • Pixel Configuration: SMD 3in1
  • Pixel Pitch: 12.5 mm
  • Module Resolution: 32 × 64 pixel dots
  • Module size: 400x800x60(mm)
  • Cabinet Resolution: 32 × 64 pixel dots
  • Cabinet Size: 400 x 800 x 60 (mm)
  • Cabinet Weight: 5 kg
  • Applications
  • Features
  • Specifications

  • - White Balance: D50 to D93 - Extremely Thin Design
    - Brightness:1000nits to 1500nits  - 3528 SMD 3in1 pixel configuration
    - Max Power Consumption:60W - High Viewing Angle
    - DC 5V Voltage Input - High Contrast Ratio
    - Constant Current Drive  - NO PC suit design

    Product Details:



    Packages for led display:

  • C12.5 INDOOR FULL COLOR LED CURTAIN SPECIFICATIONS SPECIFICATIONS
    12.5mm Pixel Pitch with SMD 3in1 LEDs
    Model: FCN-C12.5
    Parameter Unit Value
     Brightness nits 1000
    Color temperature deg.k 6500
     Viewing angle - Horizontal deg. 140(﹢70/﹣70)
     Viewing angle - Vertical deg. 140(﹢70/﹣70)
     Cabinet Weight kg 5
     Cabinet Width mm 400
     Cabinet height mm 800
     Cabinet depth mm 60
     Cabinet area sq. m. 0.32
     Cabinet material   Aluminum
     Aspect ratio   1 : 2
     Ingress Protection (Front/Rear) IP IP40/IP20

    Operating temperature range

    deg. C 0 to 40
     Operating  Humidity range HR 10% to 90%
     Pixel type and configuration R/G/B SMD 3in1
     Pixel pitch mm 12.5
     Pixel matrix per cabinet   32 x 64
     Pixels per cabinet   2048
     Lines per meter   80
     Pixels per sq. meter   6400
     LEDs per sq. meter   6400
     Recommended minimum viewing distance m 12
    Colours   281 trillion
     Gray scale  Levels 65536  levels per colour
     Brightness control Levels 100
     Digital processing bit 16
    Frame rate Hertz 60
     Display refresh rate Hertz ≥1000
     Input voltage VAC 110 / 240
     Input power frequency Hertz 50 or 60
     Input power (max/avg) Watts per sq.m 200/80
