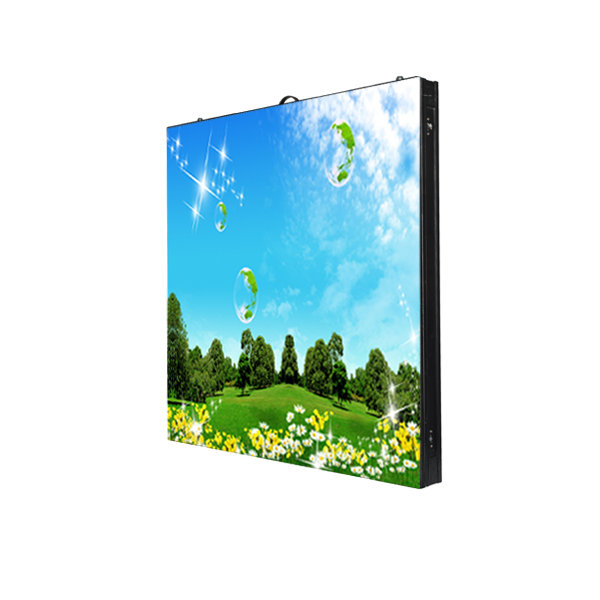

Product details - P7

  • A7L
  • Pixel Configuration: SMD 3in1
  • Pixel Pitch: 7.62mm
  • Module Resolution: 32 x 16 pixel dots
  • Module size: 244mm x122mm
  • Cabinet Resolution: 96 x 96pixel dots

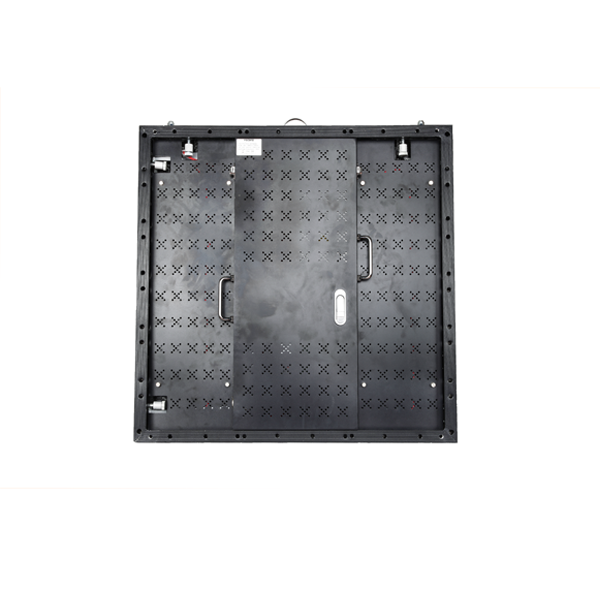

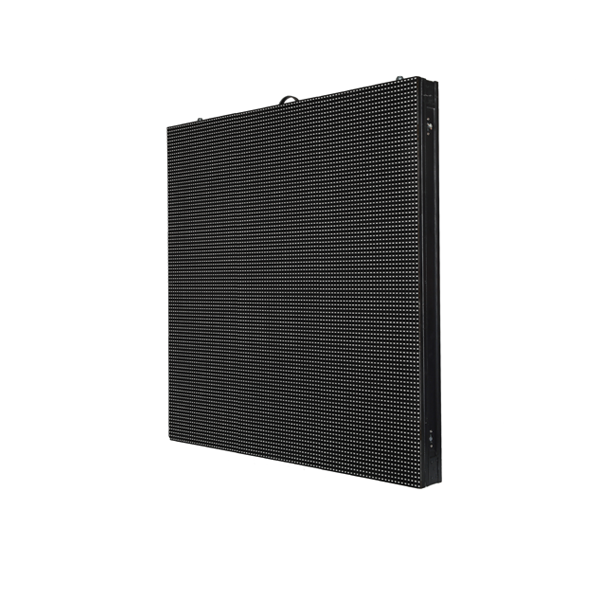

  • Cabinet Size: 732x 732 x 70 (mm)
  • Cabinet Weight: 12.3kg
  • Applications
  • Features
  • Specifications

  • - White Balance: D50 to D93 - Extremely Thin Design
    - Brightness:1500nits to 2500nits - Black SMD 3in1 Pixel Configuration
    - Max Power Consumption: 22W - High Viewing Angle
    - DC 5V  Voltage Input - High Contrast Ratio with a perfect louver/cover
    - Constant Current Drive

    Product Details:



    Packages for led display:

  • A7L Indoor Full Color  LED SCREEN SPECIFICATIONS
    7.62mm Pixel Pitch with SMD 3in1 LEDs
    Model: A7L
    Parameter Unit Value
     Brightness nits 1500
     Color temperature deg.k 6500
     Viewing angle - Horizontal deg. 140(﹢70/﹣70)
     Viewing angle - Vertical deg. 140(﹢70/﹣70)
     Cabinet Weight kg 12.3
     Cabinet Width mm 732
     Cabinet height mm 732
     Cabinet depth mm 70
     Cabinet area sq. m. 0.54
     Cabinet material   Aluminium
     Aspect ratio   1 : 1
     Ingress Protection (Front/Rear) IP IP40/IP20

    Operating temperature range

    deg. C 0 to ﹢40
     Operating  Humidity range HR 10% to 90%
     Pixel type and configuration R/G/B SMD 3in1
     Pixel pitch mm 7.62
     Pixel matrix per cabinet   96 x 96
     Pixels per cabinet   9216
     Lines per meter   131
     Pixels per sq. meter   17222
     LEDs per sq. meter   17222
     Recommended minimum viewing distance m 8
     Colours   281Trillion
     Gray scale  Levels 65536 levels per colour
     Brightness control Levels 100
     Digital processing bit 16
     Frame rate Hertz 60
     Display refresh rate Hertz ≥1000
     Input voltage VAC 110 / 240
     Input power frequency Hertz 50 or 60
     Input power (max/avg) Watts per sq.m 600/250
